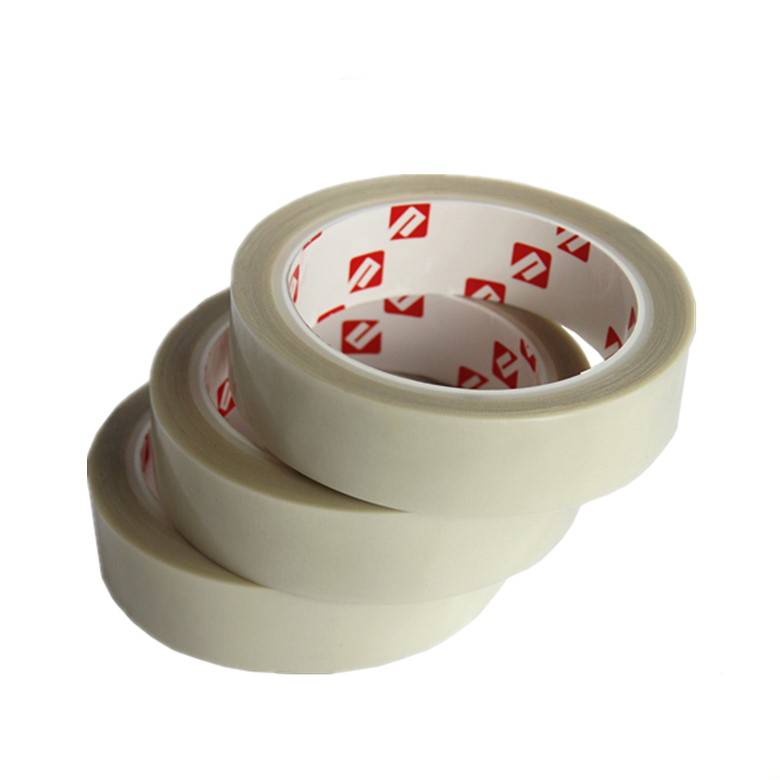

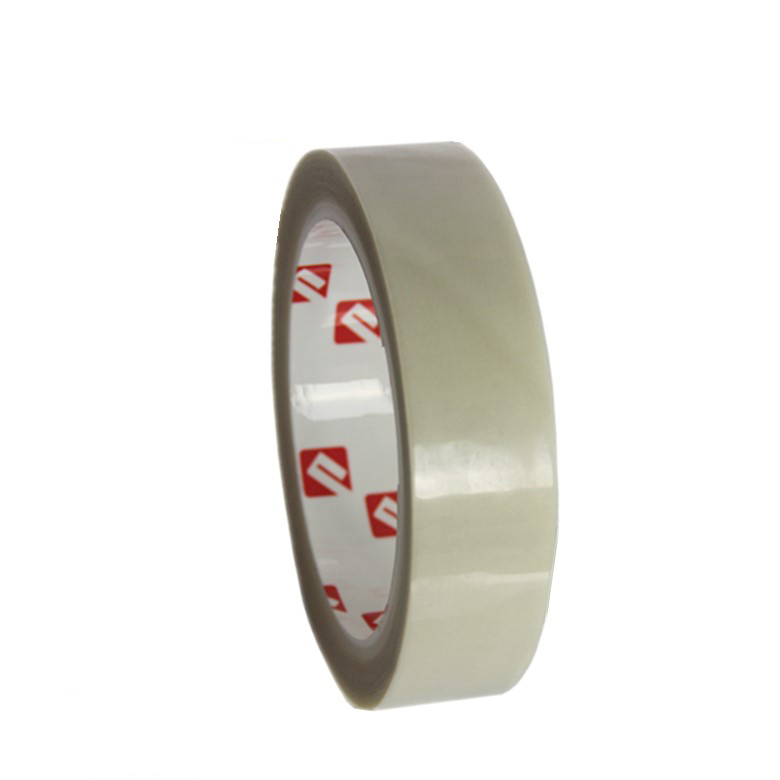

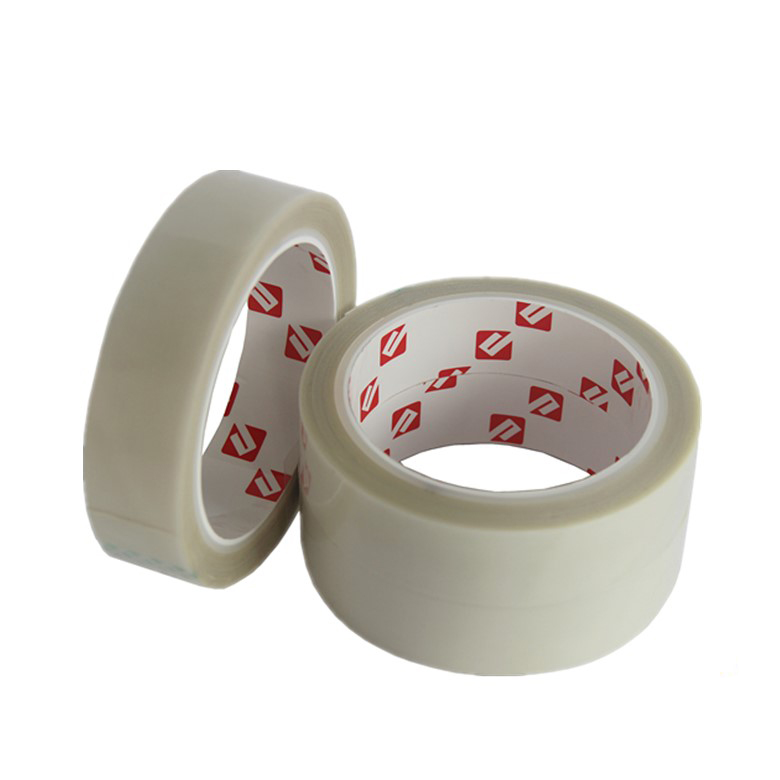

Glass cloth tape is made of high-performance glass cloth coated with silicone pressure-sensitive adhesive or acrylate. It has the characteristics of high temperature resistance, high Breakdown Voltage resistance, strong adhesion, high Tensile Strength, and good insulation.
1. Class H heat-resistant insulation binding.
2. High-strength insulation protection such as high-temperature sandblasting protection and lithium-manganese battery insulation wrapping.
3. Insulation, binding and permanent protection of coils, motors and transformers.
4. Heavy load, high temperature equipment or air conditioner contactor.
5. Surface protection in powder coating.
6. Repair and strengthen insulation of mine equipment.
| Property | ||||||
| Product Code Technical Parameters |
P0801 | P0802 | P0818 | P0820 | P0823 | P0828 |
| Color | White | White | White | White | White | White |
| Total Thickness[mm] | 0.18 | 0.18 | 0.18 | 0.2 | 0.23 | 0.28 |
| Backing Thickness[mm] | 0.13 | 0.13 | 0.13 | 0.13 | 0.13 | 0.13 |
| Backing | Fiberglass Cloth | |||||
| Adhesive | Silicone | Acrylic | Silicone | Silicone | Silicone | Silicone |
| Release Film | / | / | / | / | PET | PVC |
| 180°Peel Strength[N/inch] | 9 | 5 | 6 | 5.5 | A：10 B：10 |
A：11 B：3 |
| Tensile Strength[kg/25mm] | 380 | 250 | 300 | 280 | 400 | 340 |
| Elongation At Break[%] | 5 | 5 | 5.7 | 4 | 7 | 4 |
| Breakdown Voltage[KV] | 3 | 2 | 3 | 3 | 3 | 3 |
| Insulation Resistance[Ω] | ≥1×1012 | ≥1×1012 | ≥1×1012 | ≥1×1012 | ≥1×1012 | ≥1×1012 |
| Long-Term Temperature Resistance[℃] | 200 | 120 | 200 | 200 | 200 | 200 |
| Short-Term Temperature Resistance[℃] | 260 | 155 | 260 | 260 | 260 | 260 |
| Flame Resistance | / | / | UL-510 | / | / | / |
Specification data
